XGT20 XGT25 XGT30

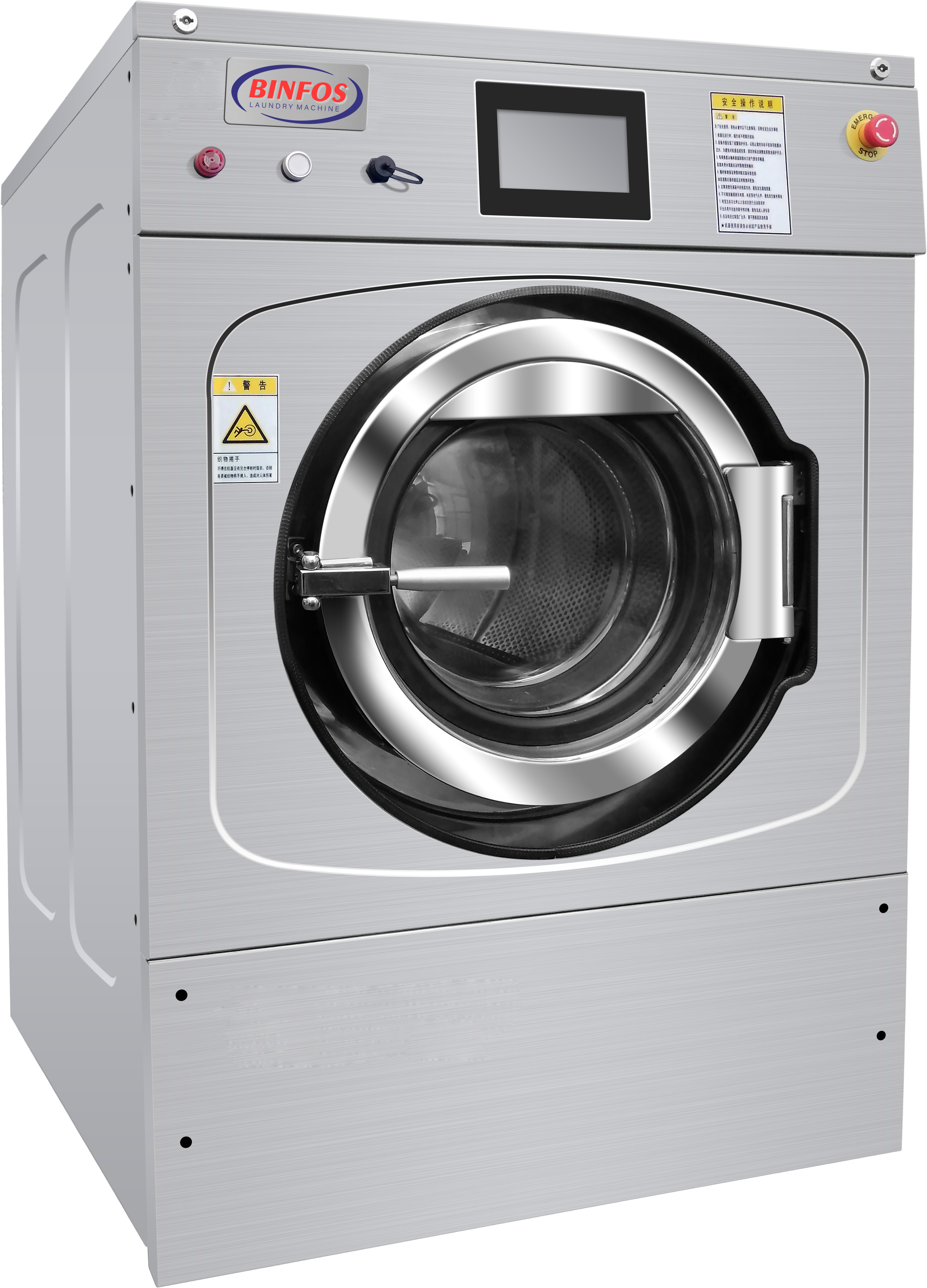

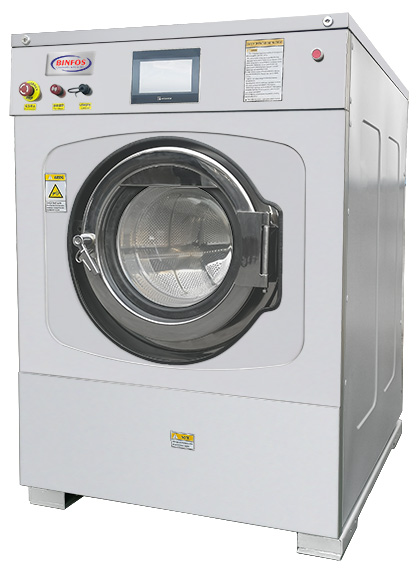

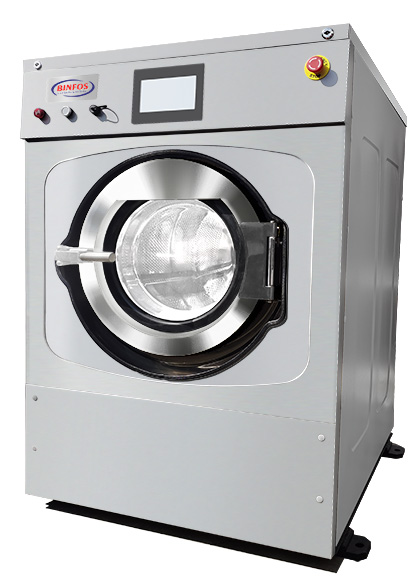

AUTOMATIC SMALL WET CLEANING WASHER
Wet cleaning is a kind of new soft washing method, which can remove intractable blot of oil, oil-dirt and wax rapidly and highly efficient. Compare with traditional washing method, wet cleaning is more profitable, economical and environment friendly. Based on this kind laundry request, we designed XGT series small automatic wet cleaning washer. It is suitable for different fabrics such as wool, rabbit fur, silk, cotton and linen, wedding dresses, dresses, duvets, coats, ski wear, shirts, uniforms, hotel linen, towels, bed sheets, curtains, etc. Wet cleaning washer extractor is an ideal cleaning equipment for hotel, superior apartment, laundry shop, beauty parlor and so on.
Main feature:

The circulating water system is more water-efficient

Unique design of inner drum, increase water power

Touch Screen Control, 50 preset programme

Intelligent metering, automatic feeding

High-grade fabrics are suitable

AUTOMATIC SMALL WET CLEANING WASHER
AUTOMATIC SMALL WET CLEANING WASHER

Advantages

Specifications

Core advantage
AUTOMATIC SMALL WET CLEANING WASHER
AUTOMATIC SMALL WET CLEANING WASHER
Advanced Laundry Technology
Advanced Laundry Technology
The XGT wet cleaning machine use advanced international laundry technology, has an excellent water circulation system, whose water circulation pump is from German, are fully using of water resource, could help you save 20% to 30% water and electricity consumption.
High Anti- corrosive Function
High Anti- corrosive Function
The shell, inner drum and outer drum are all with 304 stainless steel, it makes the working parts to be high anti- corrosive functions. And the unique inner drum design of inner drum will create a fall inside the drum, then it can improve the mechanical force significantly.
Intelligent Control
Intelligent Control
Equipped with intelligent timing system for liquid detergent, the washer will judge consumption automatically, and dosing the detergent in proper volume for washing.
Cold-Hot-Mix System
Cold-Hot-Mix System
Cold-Hot-Mix system of water, will mix water in different temperature to suitable for different laundry proceed.
50 Preset Programmers
50 Preset Programmers
PLC controller matched with a touch screen, which is with 50 preset laundry programmers and modifiable, easily deal with laundry request of varies fabrics.
Multi-functional Washing
Multi-functional Washing
The wet cleaning washer can handle a wide range of fabrics, including wool, silk and other luxury garments, including those containing viscose, cellulose acetate, viscose, rabbit fur and cashmere, while cleaning Gore-Tex and Sympatex fabrics without damaging films or waterproofing layers, and also can be used to clean fire-resistant clothing.

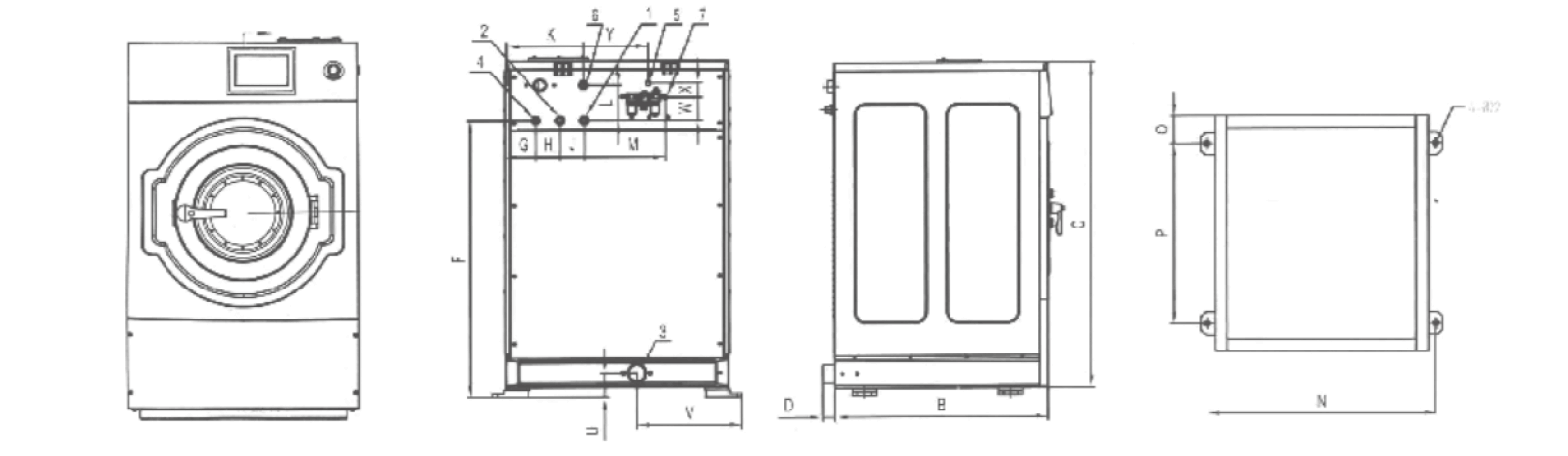

Dimension drawing

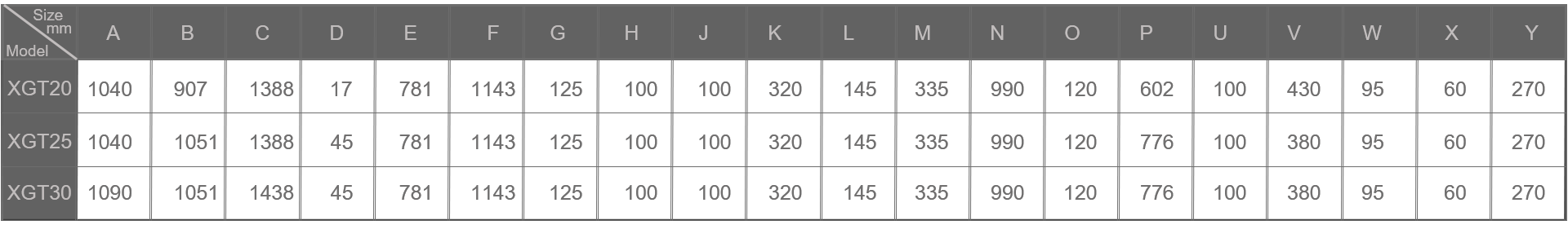

Overview, Dimensions and Connection Port Position

Dimension drawing(图1)

Overview, Dimensions and Connection Port Position

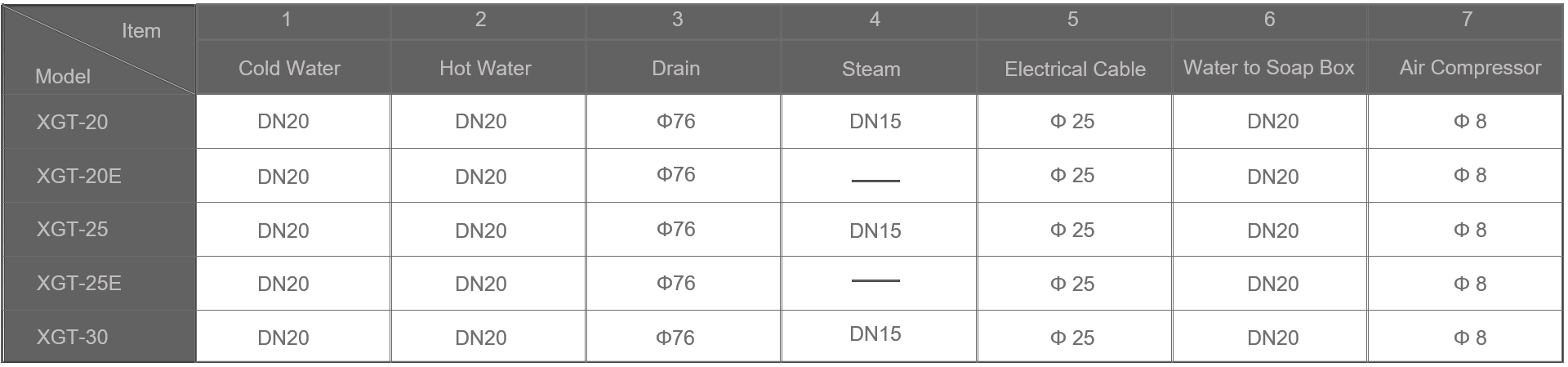

Connection Port Position

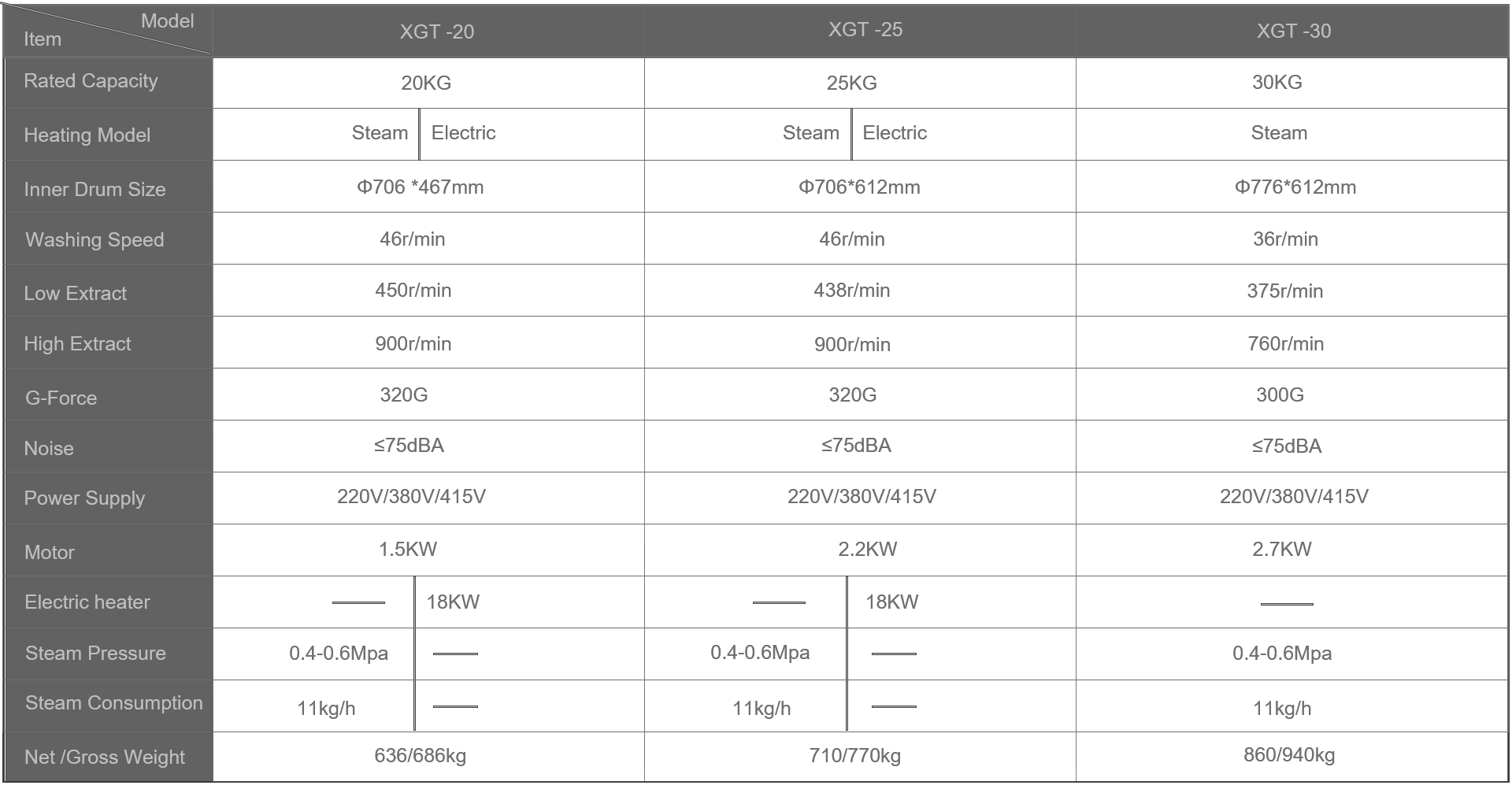

Main Technical Data




Optional                                         *Manual over-ride control system

                      * Both Steam and Electric heating
