XTG50 XTG70 XTG100 XTG150

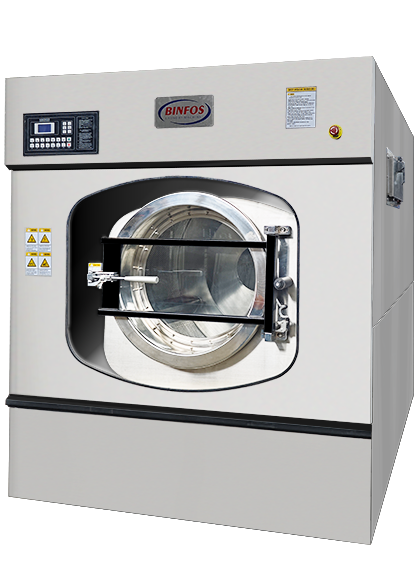

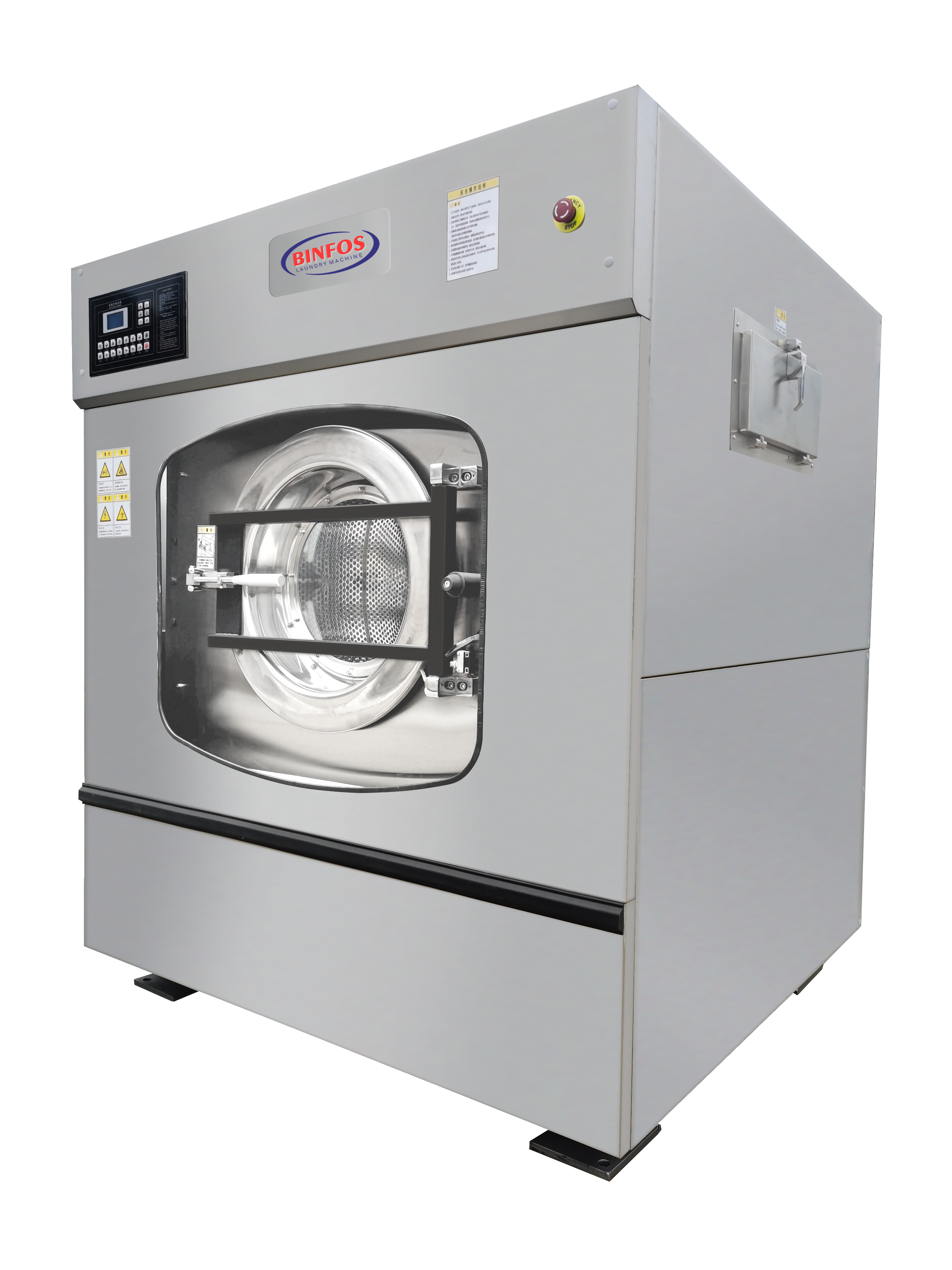

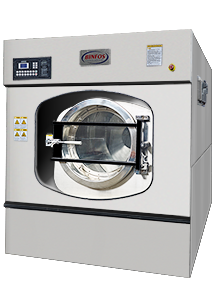

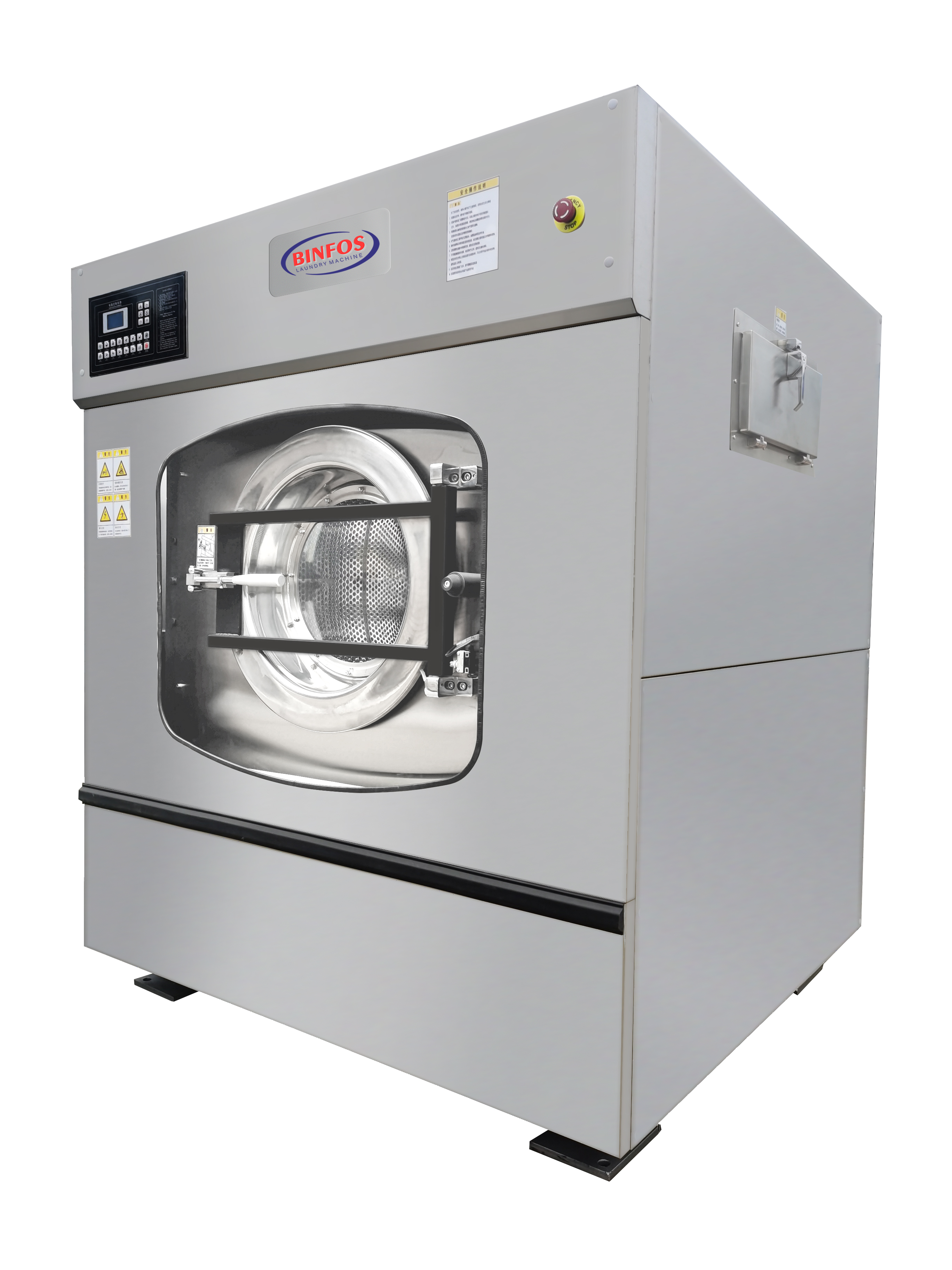

INDUSTRIAL WASHER EXTRACTOR

The XTG series industrial washer extractor is a kind of lower suspended full automatic industrial washer and extractor, which is applicated to place including laundry shop, laundry factory, hotel, school, army, washing and dyeing factory, garment factory etc. It has advantage of high anti-corrosion, strong shock-absorbing ability, energy and water saving, reliable and durable. It can fully meet customer’s large capacity, high intensity laundry work requirement.

Main feature:

Drive motor mounted on top

Basket Volume : Rated Capacity ＞ 10.1

Noise less than 75dB

Anti-eccentric Load Ability up to 40%

Extractor Drying Success Ratio over 85%

VIEW MOER

Advantages

Specifications

Core advantage

304 Stainless steel

Anywhere touched with water/steam is made of SUS304, and also front panel（20mm thickness）, which will improve the anti-corrosion ability, make equipment to be much durable working and easier cleaning.

shock absorption

Advanced shock absorption system, make the efficiency more than 97%; and the extract anti-eccentric Load Ability up to 40%, easily remove the heavy vibration force caused by high speed extract, easy installation on any floor, not special foundation needed

New green laundry option

Unique complete structure design, not only make it save water consumption, also make shorter time for following drying process.

Easily maintenance

The rotary rod of inner drum will do heating process and milling process(better than cutting), which will prolong working life and easily maintenance.

Long service life

Drive motor mounted on the top of washing machine, which will avoid any damage caused by water and steam, that will prolong the service life of motor.

Easy operation

30 modifiable washing programs, 5 preset programs of control system, 5 soap distributor boxes, will make it suitable for any washing requirement, and greatly improve work efficiency.

Good anti-corrosive

Outer drum was processed via 4 steps anti-corrosion technology, avoid any rust caused by contacting water and Chemicals.

Multifunctional integration

It can be applied to the washing and dewatering procedures of linen, tablecloths, towels, pillowcases, bedding, clothing, etc. in hotels, schools, hospitals and other places.

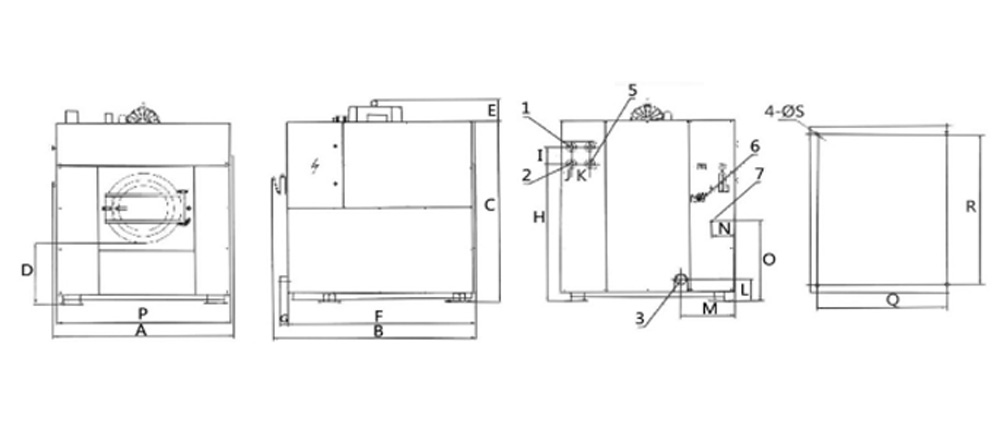

Outline of the washer

Outline of the washer(图1)

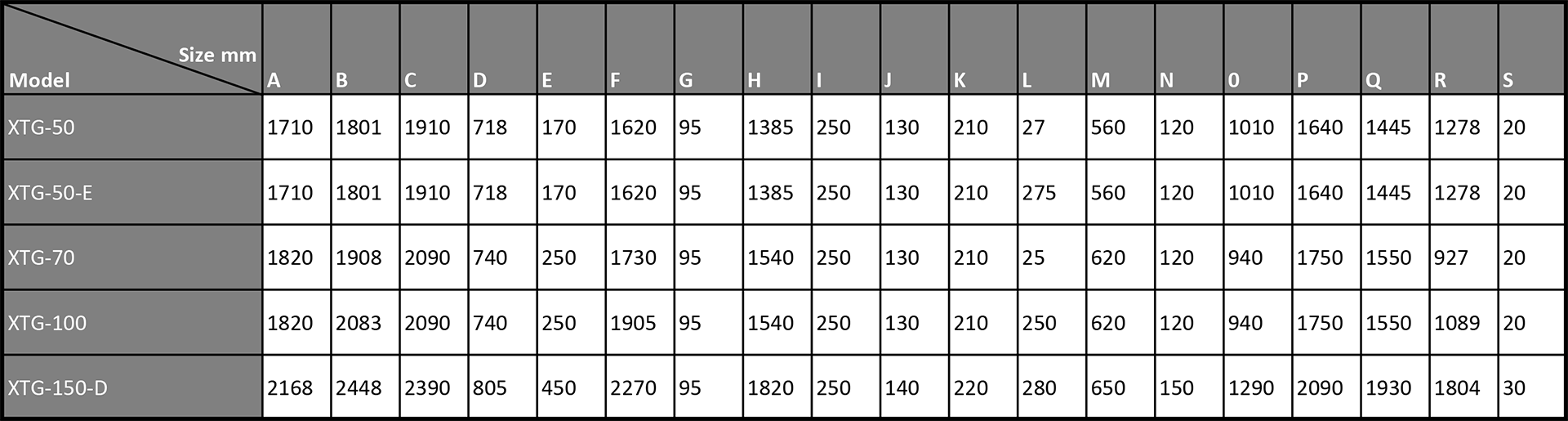

Overview, Dimensions and Connection Port Position

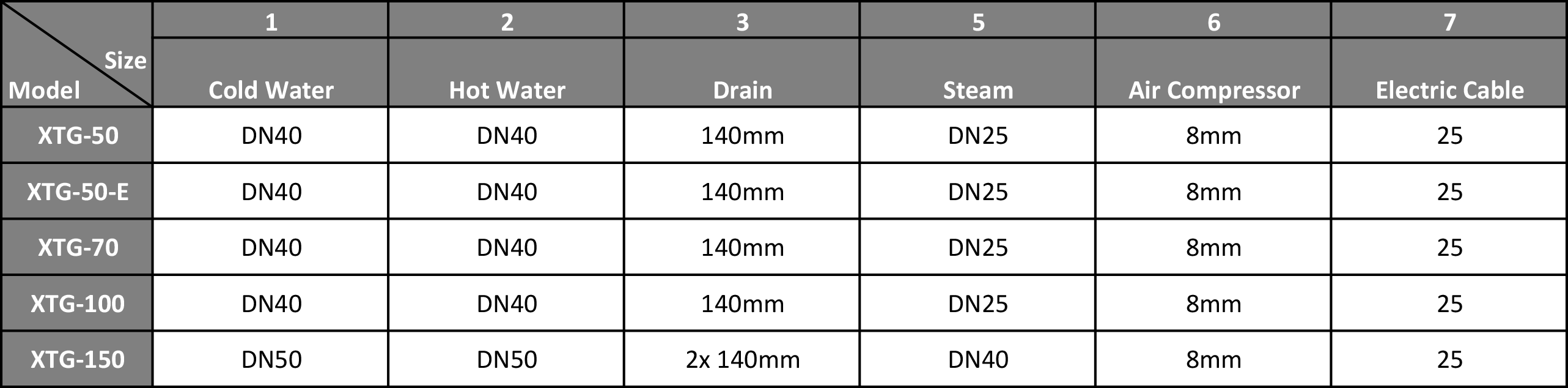

Connection Port Position


Main Technical Data
